Compressed air energy storage – saving power for future use

Meeting changing energy demands with the power of air

Compressed air energy storage (CAES) uses geological reservoirs to store large amounts of energy for long periods of time – a very economical, effective solution for large-scale applications. Everllence (former MAN Energy Solutions) is developing industry-leading equipment and components for CAES processes and storage based on proven technology developed over decades.



Energy storage systems

Powering large-scale energy storage with CAES

Proven power
300
MW
capacity of the world's first CAES plant with our compressors (Huntorf, Germany)
High pressure
250
bar
maximum compressor discharge pressure
Massive airflow
1.5 million
m³/h
maximum compressor suction flow rate
Combined Heat and Power Energy Storage

Access huge amounts of energy when you need it

As fluctuating renewables become increasingly prevalent, power systems are facing situations where more electricity is produced than needed to cover demand. The solution: Develop effective energy storage systems to save this excess energy, allowing operators to draw on it as needed.

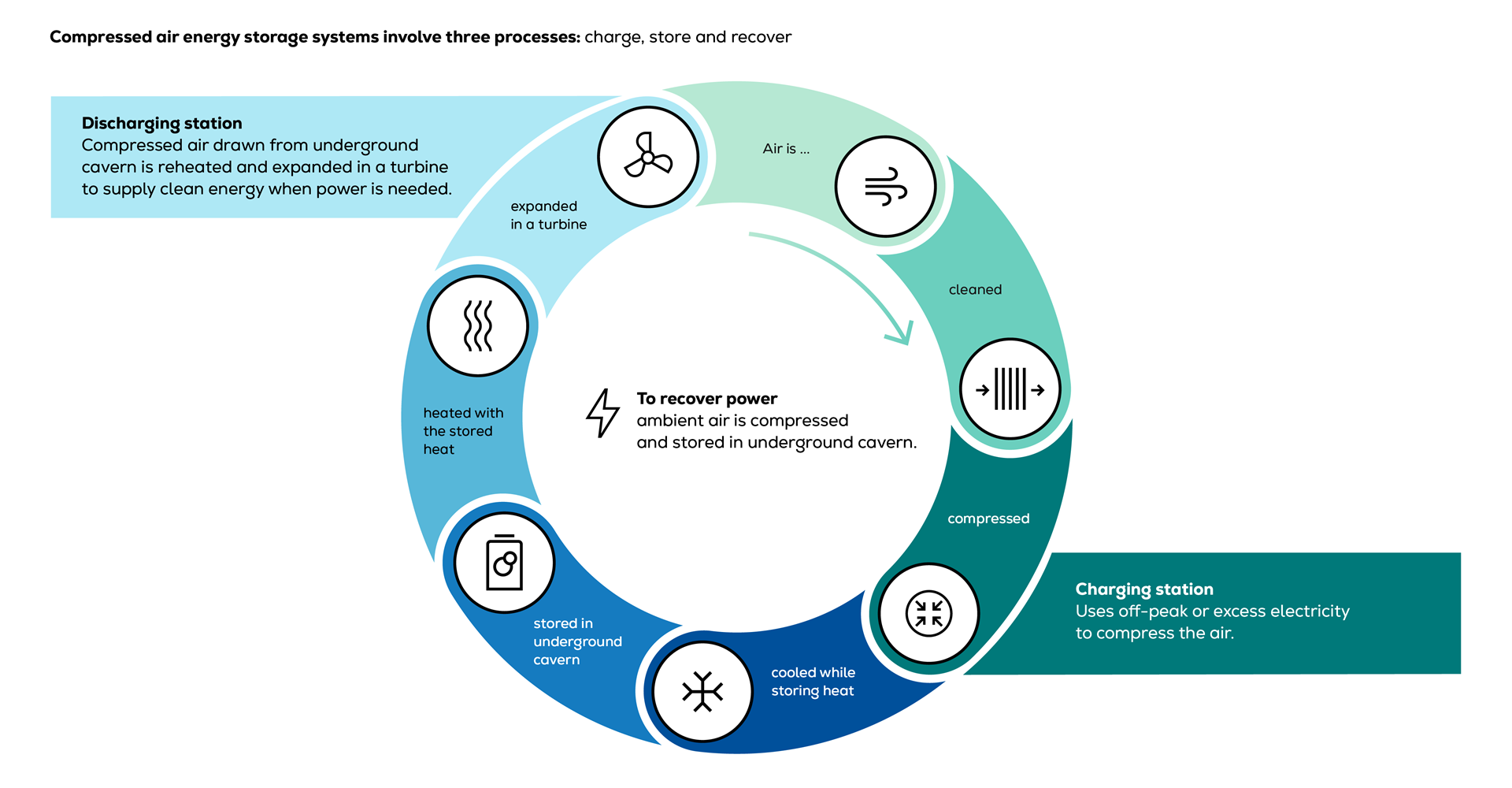

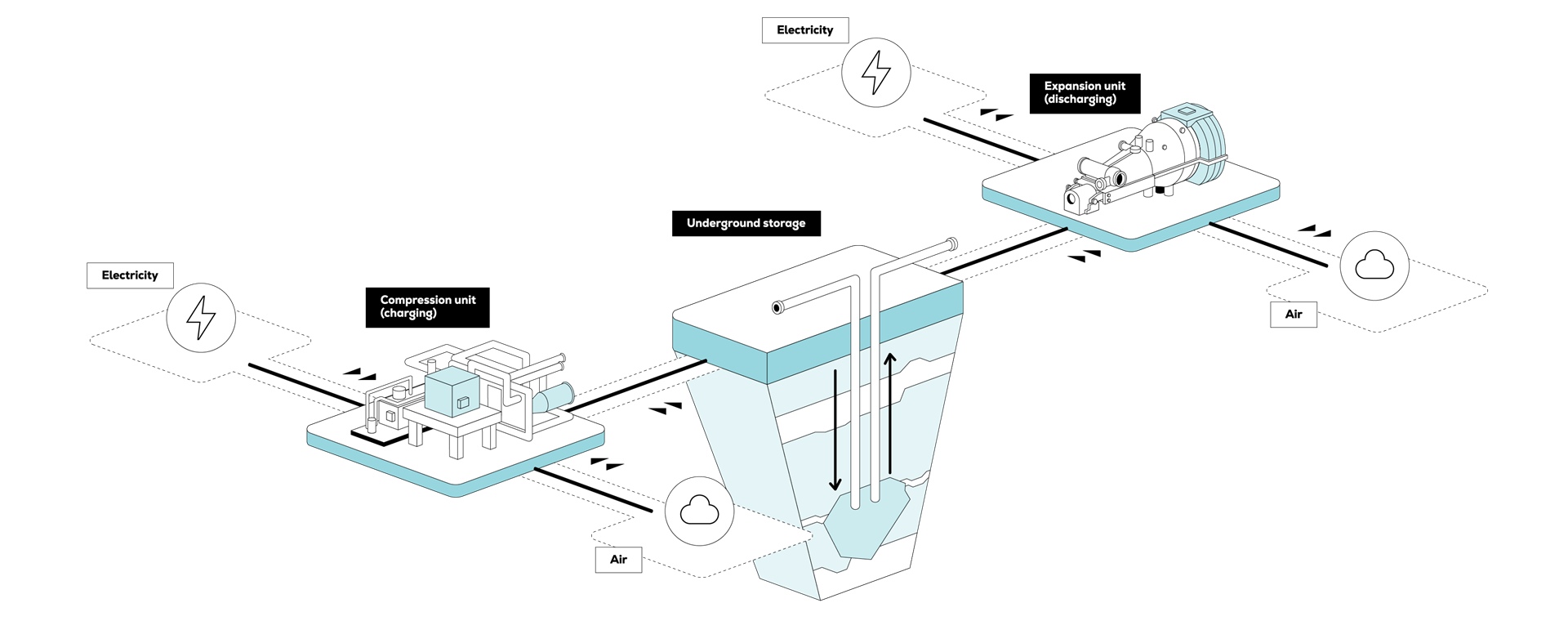

CAES technology allows energy to be stored on a very large scale while ensuring that the grid is stable – for a secure power supply. The CAES process uses electricity to compress and store ambient air under pressure in underground reservoirs, such as caverns and salt mines. When power is required, compressed air is drawn through an air expander to power a generator. To improve round-trip efficiency, thermal storage can also be included in the compressed air energy storage facility.



Everllence CAES compressors and expanders

With decades of experience, Everllence is a leading provider of turbomachinery for Compressed Air Energy Storage (CAES). We supplied the compressors for the world’s first large-scale CAES facility in Huntorf, Germany (1978) – still operating today. Our solutions offer high power output, large storage capacity, and multiple energy services, including spinning reserve and black start.

Everllence provides efficient axial-radial compressors for large-scale applications, and expander units up to 180 MW, all backed by over 100 years of in-house expertise. Each system is tailored to balance efficiency and investment cost.

How you benefit:

  • Low capital investment
  • Turbomachinery customized to meet specific CAES processes
  • Best efficiency
  • High availability and reliability
Powerplant in the mist

Compressed air energy storage in action

CAES solutions based on proven technology developed over decades

Everllence has taken an EPC role, responsible for the power plant's overall engineering, procurement, and construction. The three 18V51/60 engines will generate power and heat to produce steam to help a local textile factory operate more cleanly and more efficiently.

CustomerProgressive Energy
Customer typePower provider
ApplicationCHP (combined heat and power plant)
Location of installationCholoma, Honduras
Commercial operations2020
Scope of workFull EPC, 3 × 18V51/60 engines

Download

Continue reading
Energy storage solutions
pdf | 109 KB
Download

Contact our Everllence energy support team

Power your CAES facility with highly efficient turbomachinery

Everllence provides support every step of the way – from consulting to developing and implementing CAES solutions. Start your CAES project today.
