The working principle

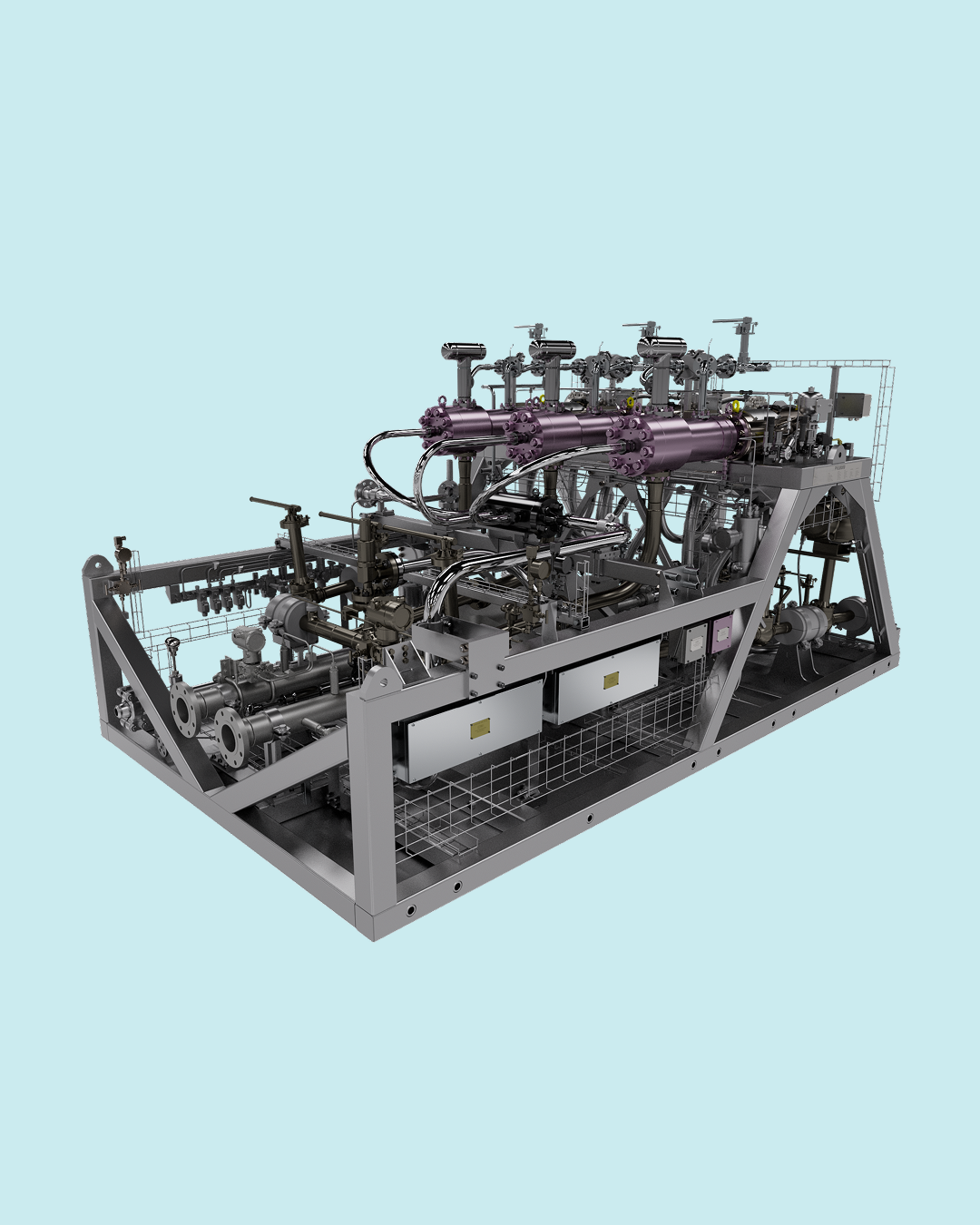

The Pump Vaporiser Unit is designed to supply LNG/ethane to the pressure and temperature required by the Everllence two-stroke ME-GI/GIE engines. The PVU receives cryogenic LNG/ethane supplied by a cryogenic centrifugal LNG fuel pump and is subsequently pressurized by a high pressure reciprocating pump, consisting of three cylinders actuated by linear hydraulic pistons. The pressurized LNG/ethane flows through a compact printed circuit heat exchanger, in which it is heated by warm glycol water. Thereafter the gas is directed towards the gas valve train (GVT) and the engine. The gas pressure delivered to the engine is controlled by hydraulic flow control of the pump. Individual control of the three cryogenic pumps heads, means that the Pump Vaporiser Units are still able to operate with only two cold-ends in service, providing the redundancy required by the market.
Key Benefits of the Pump Vaporiser Unit
High reliability and easy maintenance
The PVU is designed for the highest standards of quality, hence ensuring the best reliability on the market. Easy maintenance is ensured by design with the operators in mind, providing easy access to exchange of spare parts. Further, Everllence PrimeServ Assist enables worldwide service surveillance through 24/7 monitoring and controlling.By loading the video you agree to YouTube's privacy policy.
By loading the video you agree to YouTube's privacy policy.
Extended time between overhaul
The PVU offers savings to the vessels OPEX through significant increase in Time Between Overhaul (TBO) compared to conventional high pressure pumps.
Embedded redundancy
Thanks to the compact and intelligent design of the PVU, the cryogenic pumps can be actuated individually, resulting in considerable saving in the complete FGSS. As a result of the PVU’s reduced size and weight, significant cost benefits in relation to installation costs are achieved.
By loading the video you agree to YouTube's privacy policy.
By loading the video you agree to YouTube's privacy policy.
Less boil off gas
No High Pressure (HP) flow recirculation to LNG tank which leads to less boil off gas (BOG) in the tank.
Experience the Pump Vaporiser Unit first-hand
With our new, interactive product experience you can now discover the functionality and all the benefits of the PVU first-hand!
Contact our experts
Get in touch with our experts and find out how to future-proof your vessels with our dual-fuel engine solutions
